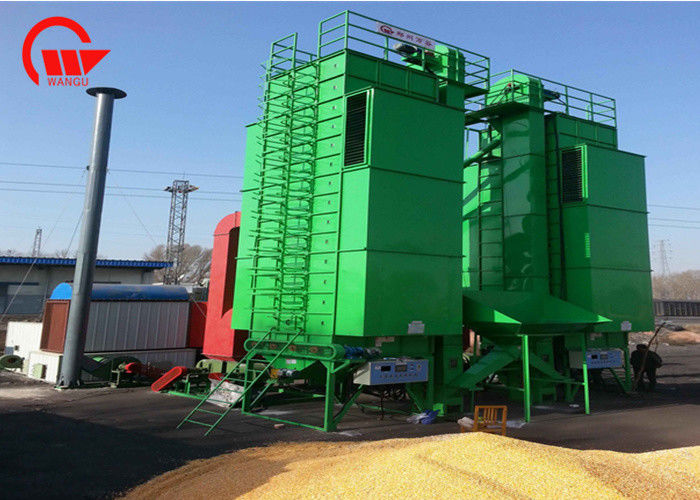

Batch Recirculating Small Grain Dryer Less Pollution For Grain
1. Introduction:
Small circulating grain dryer is a kind of small grain dryer developed by our company based the continuous grain dryer. The circulating drying process of the machine solves the problem of small grain dryer that can't dry high-moisture raw grains due to the short time of drying. During operation of the machine, as raw grains fail to reach the safe-moisture level after dried for the first time, they will then be circulated into the dryer for the second drying with the circulating delivery system. The moisture level of grain will be tested in real time at the exit of dryer. Until the safe-moisture level of grain is reached, will the discharge valve be started to discharge the grain out of the dryer.
2. Features
a. The circulating process extends the drying time without increasing height of the dryer,ensuring the drying effect on high-moisture raw grains,saving the cost and reducing the floor space.
b. The multi-layer horn box structure inside the dryer makes the exchange between grain layers and hot air more thoroughly and evenly.
c. The patened six-impeller grain discharge mode makes the grain discharge on the whole section of dryer more evenly and thoroughly.
d. The Dryer is set multiple emergency grain discharge ports for easy maintenance and trouble shooting.
e. Coalor straw, wood and other biomass fuels are takenas fuels of hot air furnace.The combustion efficiency is high,significantly reducing the fuel cost.
f. Hand-fired hot air furnace and efficient steel tubular heat exchanger with the integrated structure of hot air furnace and heat exchange are equipped.The hot air furnace is built overall,high in strength and durable.
g. On-line tester of grain moisture is equipped.The whole machine adopts one-touch intelligent automatic control and touch-screen operation interface,intuitive indisplay and easy to operate,and has manual control mode and autimatic hot-blast temperature adjustment function
3. Small grain process parameters
| Item | Parameters |
| Variety of grians | Paddy and wheat |
| Drying Mode | Circulating |
| Effective volume | 20-30 |
| Drying Rate | 0.8-1.2 |
