Biomass Furnace Drive Corn Dryer Machine Constantly Energy Saving No Pollution

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : Nude packing Delivery Time : 30-100days upon the order quantity
Payment Terms : L/C, T/T Supply Ability : 200 sets a year
Place of Origin: ZHENGZHOU Brand Name: WANGU
Certification: ISO Model Number: WGH

Detail Information

Raw Material: Corn Handling Capacity(T/D): 100-1000
Heating Medium: Clean Hot Blast Warranty: 12 Months
High Light:

corn drying equipment

,

corn batch dryers

Product Description

WGH 100 Biomass Furnace Drive Grain Dryer Machine 100 Tons /Corn Dryer Machine

 1. Introduction:

The mixed flow grain dryer consists of drying sections,tempering section and cooling section ertc.Many layersof air ducts are arranged in an alternate way to form a mixed air flow blowing through the grain to remove the moisture.Suitable for drying coarse grains-corn,sorghum;cereal grains-rice,wheat; small grain-rapeseed,millet and oilseeds-soybeans.
2. Scope of application
 Corn/Maize
3. Working principle
The first important part of corn dryers is the hot-blast furnace. The following types like: coal burning furnace, fuel burning furnace, natural gas burning furnace, and bio-fuel burning furnace will be available for users. The main function of the furnace is to provide dryer with hot air as the drying medium.
The most important part of the corn dryer is the drying machine. Its internal components are mainly composed of air intakes and angular boxes.
In the whole process, raw grain will first fill the drying container, then the hot-blast generated by the furnace will go through the air intakes and enter the inside of the machine. Corn flows slowly from top to bottom by gravity. Meanwhile the hot air flow through the corns layer by layer. In this process, heat is transferred from hot air to grain material to raise the grain temperature to make the moisture inside the material evaporate into the air and become exhausted air, then discharged into the air through the angular boxes. if the working temperature inside the dryer exceeds 150 degrees, or the temperature of corn more than 60 degrees, the quality of corn will be greatly affected. Corn dryer of Wangu Machinery Co., Ltd, select the technology of tempering process, alternating high and low temperature drying multi-level segment, the corn into the cooling section, after cooling, cooling grain to grain storage temperature, then discharged from the grain discharge section greatly to ensure the quality of maize, but also save energy, making breakage rate of corn to 3‰ or less.

4. Features
  Single outdoor use, weather proof.
· Constantly, stable, easy operating, small footprint.
· Suitable to various grains.
· Heat recycling, lower cost of energy.
· Grain drying complete, evenness, dry grains can storage directly.
· Quality after drying is pretty good, no pollution.



5. CORN DRYER CHARACTERISTICS:

Model WGH100
Handing capacity
(T/d)
100
Drying rate(%) 5~25%
Heating medium Clean hot blast
Hot-blast temprature(℃) 65~160
Most bearing temperature
of grains(℃)
55
Unevenness of drying(%) < 2
Added value of breaking rate(%) < 0.5
Heat consumption per unit
(kj/kg)
5000~7000
Coal consumption(standard coal)(kg/h) 60~230
Capacity According to different area,condition,decreased moisture and needs
Section series 25×25
Height(M) 6~10
6. Product Detail Show

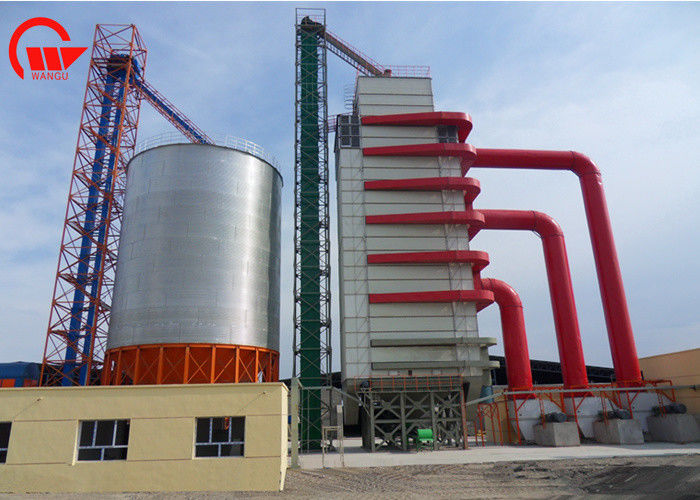

Biomass Furnace Drive Corn Dryer Machine Constantly Energy Saving No Pollution 0Biomass Furnace Drive Corn Dryer Machine Constantly Energy Saving No Pollution 1
7. Our WorkShop
Biomass Furnace Drive Corn Dryer Machine Constantly Energy Saving No Pollution 2Biomass Furnace Drive Corn Dryer Machine Constantly Energy Saving No Pollution 3
8. Packing and Delivery
  Biomass Furnace Drive Corn Dryer Machine Constantly Energy Saving No Pollution 4Biomass Furnace Drive Corn Dryer Machine Constantly Energy Saving No Pollution 5













9.
9.Sucess case
Biomass Furnace Drive Corn Dryer Machine Constantly Energy Saving No Pollution 6Biomass Furnace Drive Corn Dryer Machine Constantly Energy Saving No Pollution 7
10. Why Choose Us

1, High drying rate , low cost and affordable.
2, The manufacturers supply, no middlemen to earn price difference.
3, Good engineers do technical guidance, the operation without worries.


11. FAQ

Q: MOQ?
A: For trial order,we accept 1 set


Q: Can you give us competive Price?
A: Yes , before inquiry us , please kindly send us the detail information of dryer. We will give you our best price.


Q: Payment terms?
A: It is 30% in advance by T/T, or L/C at sight.
