Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry

Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry

    • Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry
    • Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry
    • Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry
    • Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry
  • Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry

    Product Details:

    Place of Origin: ZHENGZHOU
    Brand Name: WANGU
    Certification: ISO
    Model Number: GHG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiation
    Packaging Details: Nude packing
    Delivery Time: 30-100days upon the order quantity
    Payment Terms: L/C, T/T
    Supply Ability: 200 sets a year
    Contact Now
    Detailed Product Description
    Raw Material: Spent,pig Hair,bone Meal,inorganic Minerals Heat Exchange Area(m2): 50-1000
    Diameter Of Roller(mm): 1300-3000 Warranty: 12 Months

    Mechanical Design Spent Grain Dryer / Rotary Steam Tube Dryer Energy Saving

    1. Introduction:

    Chemical industry, light industry, food, grain,feed and other industries, such as the drying of distiller’sgrains, pig hair, bone meal,inorganic minerals, corn fiber, germ, protein powder, bran, corn grains, soybean dregs, fish and shrimp scraps, rapeseed (not for seed use)and other materials.
    2. Scope of application
     Spent grain,pig hair,bone meal,inorganic minerals,corn fiber,germ,protein powder,bran,corn grians,soybean dregs,fish and shrimp scraps,rapeseed and other materials
    3. Features of material
    Raw material Initial moisture End moisture Evaportaion power kgH2O/m2h
    Distiller's grain for beer or spirit 65% 10~12% 4.9
     4. Advantages
    It’s a low-carbon, environment-friendly and energy-saving product and its energy consumption is about 65% of that ofthe traditional tube bundle dryer.
    ■ During the rotating process, the rotary tube bundle stirs materials up and down inside the roller.There are no dead angle when turning and mixing material.
    ■ Since the heat exchange tube is not bearing weight of raw material when the roller is rotating, the probability of leakage of the heat exchange tube is lower.the service life of the equipmentis greatly improved; what’s more, it also allows starting with raw materials,thus is easy to use and maintain.
    ■ It increases the indirect heat exchange area.The whole roller shell is involved in the heat exchange when the roller is in operation,which is more conductive to materials raw material drying and enhances the drying effect.
    5. CORN DRYER CHARACTERISTICS:
    Model Heat exchanger area(m2) Diameter of roller(mm) Rotating speed(r/min) Main power(kw) Power of screw conveyor(kw) Dimension
    GHG50 50 1300 2~8 4 0.75 8400×1500×2650
    GHG100 100 1500 2~8 5.5 1.1 9700×1700×2650
    GHG150 150 1800 2~8 7.5 1.1 10500×2100×3000
    GHG200 200 1800 2~8 11 1.5 12400×2100×3000
    GHG300 300 2200 2~7 15 1.5 12000×2100×3000
    GHG400 400 2400 2~7 22 1.5 11500×2800×3900
    GHG500 500 2600 1~5 30 2.2 13100×3000×4200
    GHG600 600 2600 1~5 37 2.2 14800×3000×4200
    GHG700 700 2800 1~5 45 3 15300×3200×4500
    GHG800 800 2800 1~5 55 3 16600×3200×4500
    GHG900 900 2800 1~5 75 4 18000*3200*4500
    GHG1000 1000 3000 1~4 75 4

    17000×3500×4900

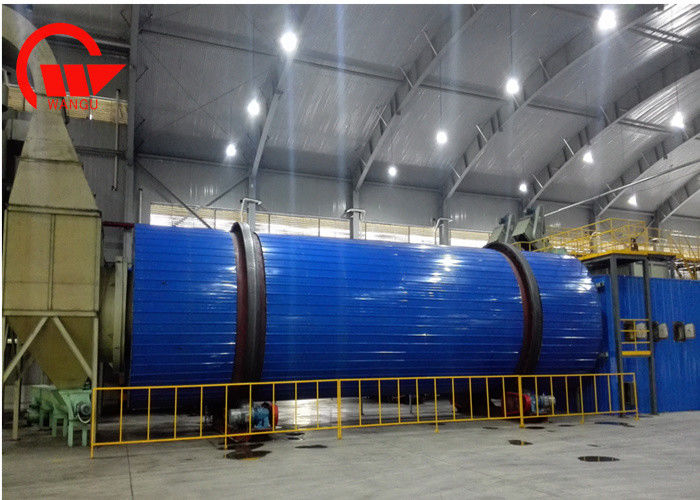

    6. Product Detail Show
    Mechanical Spent Grain Drying Equipment Energy Saving For Chemical IndustryMechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry
    7. Drawing for Spent Grain Drying Equipment
    Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry
    8. Customer Visit
    Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry
    9. Our Workshop
    Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry
    10. Our Worker
    Mechanical Spent Grain Drying Equipment Energy Saving For Chemical Industry
    11. Why Choose Us

    1, High drying rate , low cost and affordable.
    2, The manufacturers supply, no middlemen to earn price difference.
    3, Good engineers do technical guidance, the operation without worries.

    12. FAQ

    Q: MOQ?
    A: For trial order,we accept 1 set


    Q: Can you give us competive Price?
    A: Yes , before inquiry us , please kindly send us the detail information of dryer. We will give you our best price.


    Q: Payment terms?
    A: It is 30% in advance by T/T, or L/C at sight.
