Vertical 20 - 10000T Metal Silos For Grain Storage , Hot Dip Galvanized Grain Silo

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : Nude packing Delivery Time : 30-100days upon the order quantity
Payment Terms : L/C, T/T Supply Ability : 200 sets a year
Place of Origin: ZHENGZHOU Brand Name: WANGU
Certification: ISO

Detail Information

Material: Carton Steel/Stainless Steel Warranty: 12 Months
High Light:

farm grain silo

,

galvanized grain silo

Product Description

20-10000 Ton Vertical Grain Silo Machine Hot Dip Galvanizing Coating For storage grain


1. Introduction:

      Steel silos are specially designed and developed by our company. The design is based upon absorption and digestion of domestic and oversea advanced technologies. Steel silos are widely used for bulk storage of grain, food products, starch, feed, and so on. Wangu supplies all-steel hopper bottom silo and flat bottom silo in a variety of sizes, features and capacities. The diameter of hopper bottom silos range from 3.6m to 32m with capacities from 20t to 1000t, and the capacity of flat bottom silos range from 800t to 10000t.



2. CHARACTERISTICS:
Cone base model full Cone base silo
Roof height 25°
specification(m) φ4.6 φ5.5 φ6.4 φ7.3 φ8.3 φ9.1 φ10.08 φ11 φ11.9 φ12.8
Diameter(m) 4.585 5.5 6.42 7.334 8.254 9.167 10.08 11 11.923 12.84
Roof height(m) 0.96 1.12 1.33 1.46 1.68 1.89 2.11 2.32 2.53 3.4
Base area(㎡) 16.5 23.7 32.4 42.2 53.5 66 80 95 111.6 129.5
Rings Eaves hight(m) 80 117
4 4.48
5 5.6 98 143
6 6.72 117 170 217 308
7 7.84 135 196 257 355 454 564
8 8.96 154 223 297 402 514 638
9 10.08 172 250 337 450 574 712 867 1039 1129
10 11.2 191 276 376 497 634 786 956 1146 1254
11 12.32   303 416 544 693 860 1046 1252 1379
12 13.44     456 592 753 934 1135 1358 1504 1755
13 14.56     496 639 813 1008 1224 1465 1629 1915
14 15.68         873 1082 1314 1571 1754 2075
15 16.8         933 1156 1403 1678 1879 2235
16 17.92           1230 1493 1784 2004 2395
17 19.04           1304 1582 1891 2129 2555
18 20.16             1671 1997 2254 2715

3. Features

Good air-tightness, wide application;

Light weight, little material, low price;

High standardization, being able to realize standardized, universal, and serial production, to meet your different needs;

Bolted connection, easily to be installed;

Easy to realize automation, accessories like: loading devices, unloading devices, aeration, temperature monitoring, level indicating, etc. are available, to complete safe grain storage;

Long service life.

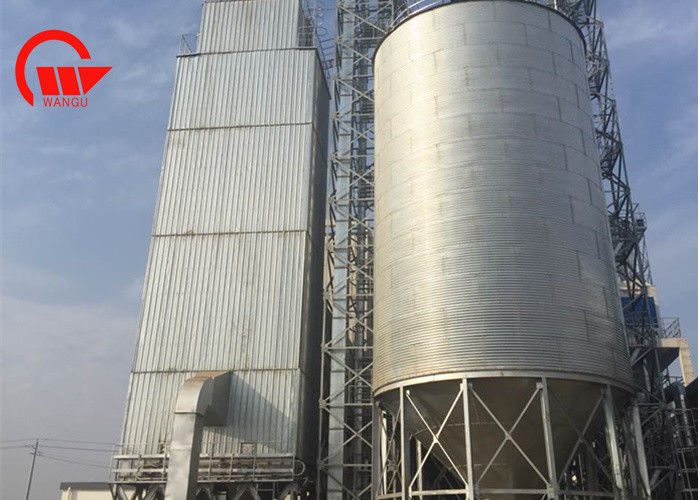

4. Product Detail Show

Vertical 20 - 10000T Metal Silos For Grain Storage , Hot Dip Galvanized Grain Silo 0Vertical 20 - 10000T Metal Silos For Grain Storage , Hot Dip Galvanized Grain Silo 1
5. Our WorkShop
Vertical 20 - 10000T Metal Silos For Grain Storage , Hot Dip Galvanized Grain Silo 2
6. Process Flow Drawing
Vertical 20 - 10000T Metal Silos For Grain Storage , Hot Dip Galvanized Grain Silo 3
7. Successful Case
Vertical 20 - 10000T Metal Silos For Grain Storage , Hot Dip Galvanized Grain Silo 4Vertical 20 - 10000T Metal Silos For Grain Storage , Hot Dip Galvanized Grain Silo 5
8. Customer Visit
Vertical 20 - 10000T Metal Silos For Grain Storage , Hot Dip Galvanized Grain Silo 6
9. Our Lab
Vertical 20 - 10000T Metal Silos For Grain Storage , Hot Dip Galvanized Grain Silo 7Vertical 20 - 10000T Metal Silos For Grain Storage , Hot Dip Galvanized Grain Silo 8
10. Why Choose Us

1, High drying rate , low cost and affordable.
2, The manufacturers supply, no middlemen to earn price difference.
3, Good engineers do technical guidance, the operation without worries.

11. FAQ

Q: MOQ?
A: For trial order,we accept 1 set

 Q: Can you give us competive Price?
A: Yes , before inquiry us , please kindly send us the detail information of dryer. We will give you our best price.

 Q: Payment terms?
A: It is 30% in advance by T/T, or L/C at sight.
