Corn / Sorghum / Rye Grain Cleaning Equipment , Oats / Buck Farm King Grain Cleaner
Contact Person : Nick Wu
Phone Number : 008615903698472
WhatsApp : +008615903698472
|Minimum Order Quantity :||1 SET||Price :||Negotiation|
|Packaging Details :||Nude packing||Delivery Time :||30-100days upon the order quantity|
|Payment Terms :||L/C, T/T||Supply Ability :||200 sets a year|
|Place of Origin:||ZHENGZHOU||Brand Name:||WANGU|
|Material:||Carton Steel/Stainless Steel||Warranty:||12 Months|
|Engine Power(kw):||1.1-4||Equipment Weight(kg):||1050-3200|
rotary screen cleaner,
grain cleaning machine
TCQY Grain Seeds Rotary Drum Sifting Machine for raw wheat Grain Pre-cleaning Equipment Corn Grain Drum Sieve Cleaner
TCQY series double drum cleaner can be widely used for pre-cleaning of bigger and smaller impurities for raw grain, such as wheat, paddy, corn etc..
Its basic principle is due to the different sizes of grain and impurity, to remove the impurities from the raw grain by rotating screen cylinder. The inner sieve and outer sieve of the dual screen cylinder have different bore diameters, with the inner sieve hole is larger than the net grain and the outer one is smaller. In the process of cleaning, raw material is sent into the inner cylinder from the inlet, the large impurities are removed by rotating screen cylinder, then discharged from the outlet, while the pre-processed material passes through the inner sieve hole being sent into the outer cylinder. In the rotating process the smaller impurities are swung out via the sieve hole, then flowing into the bucket and being discharged from the little outlet, at last the treated clean grain is discharged from the discharging vent.
The machine has characteristics of simple driving mechanism, stable running, low noise, low power consumption, and easy maintenance.
|Item||Specification and Parameters|
|TCQY80/220||TCQY 90/360||TCQY 120/360||TCQY 100/420|
|Inner screen cylinder (mm)||Diameter||Φ800||Φ900||Φ1200||Φ1000|
|Outer screen cylinder (mm)||Diameter||Φ1200||Φ1370||Φ1750||Φ1550|
|Screen cylinder speed(r/min)||16||8.5||8.5||8.5|

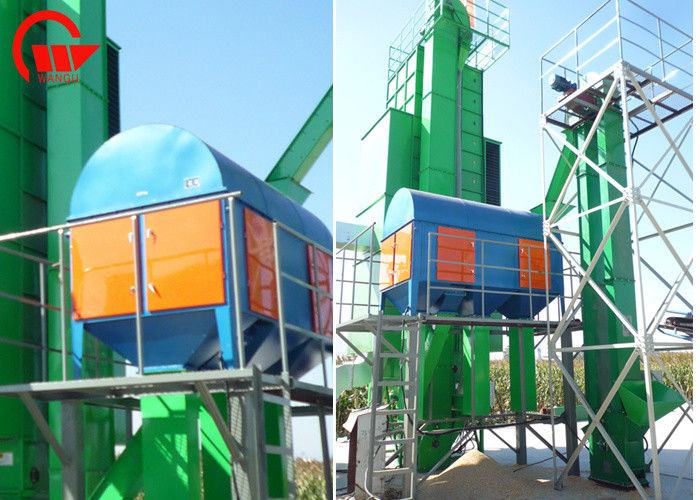

3. Product Detail Show
1, High drying rate , low cost and affordable.
2, The manufacturers supply, no middlemen to earn price difference.
3, Good engineers do technical guidance, the operation without worries.
