Cushion Type Air Operated Conveyors , Packaging Variable Speed Conveyor Machine

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : Nude packing Delivery Time : 30-100days upon the order quantity
Payment Terms : L/C, T/T Supply Ability : 200 sets a year
Place of Origin: ZHENGZHOU Brand Name: WANGU
Certification: ISO Model Number: TQS

Detail Information

Material: Carton Steel/Stainless Steel Warranty: 12 Months
Colour: Customized Capacity(m³/h): 50-2000
High Light:

air supported belt conveyor


enclosed belt conveyor

Product Description

TQS Series factory price industrial packing line air cushion packaging belt conveyor machine

1. Introduction:

     TQS series of air cushion conveyor uses air film instead of holding roller to reduce the weight of the machine and greatly improve the running condition of the belt, making belt service life longer and reducing the energy consumption.

Air cushion conveyor has the advantages of large conveying capacity, smooth and reliable operation, low start-up power and direct start with full load. Due to the fully enclosed structure, dust is less, environment friendly.


Model TQS50 TQS65 TQS80 TQS100 TQS120 TQS140 TQS160
Capacity(m³/h) 50-100 100-200 200-300 300-600 600-1000 1000-1200 1500-2000

3TQDS Series Air Cushion Conveyor


- Air is blown into an air chamber and then spayed out from small openings of the curved chute which is equipped on the top of the air chamber. Thus a thin air layer is formed, which is also called air cushion, between the curved chute and belt. The air cushion supports the belt instead of the traditional carrying roller of the belt conveyor and makes the transfer of the belt more stable and less power consumption.


- Less moving resistance, longer service span of belt, less power consumption .The running cost of the equipment can be reduced by 80%.

- Optional range of belt velocity (0.8m/s~5.0m/s). High speed brings higher capacity and higher efficiency.

- The equipment and the belt work stable without the belt deviation and making materials spray out.

- The equipment can work outdoors thanks to its complete sealing and rain proof.

- The equipment is less noise and easy to maintain and easy to started with load.

- Please feel free to contact us if more information is needed.

4. Product Detail Show

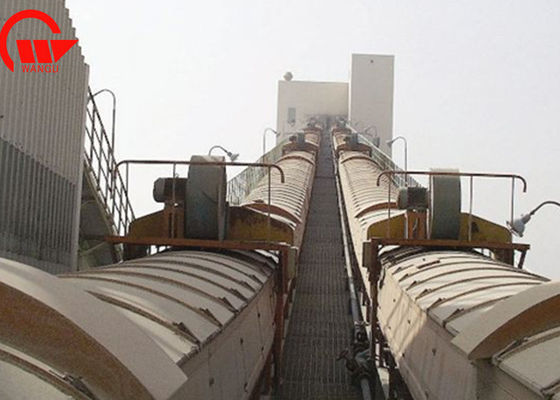

Cushion Type Air Operated Conveyors , Packaging Variable Speed Conveyor Machine 0
5. Our WorkShopCushion Type Air Operated Conveyors , Packaging Variable Speed Conveyor Machine 1
6. Package and Transport
Cushion Type Air Operated Conveyors , Packaging Variable Speed Conveyor Machine 2

7. Why Choose Us

1, High drying rate , low cost and affordable.
2, The manufacturers supply, no middlemen to earn price difference.
3, Good engineers do technical guidance, the operation without worries.
