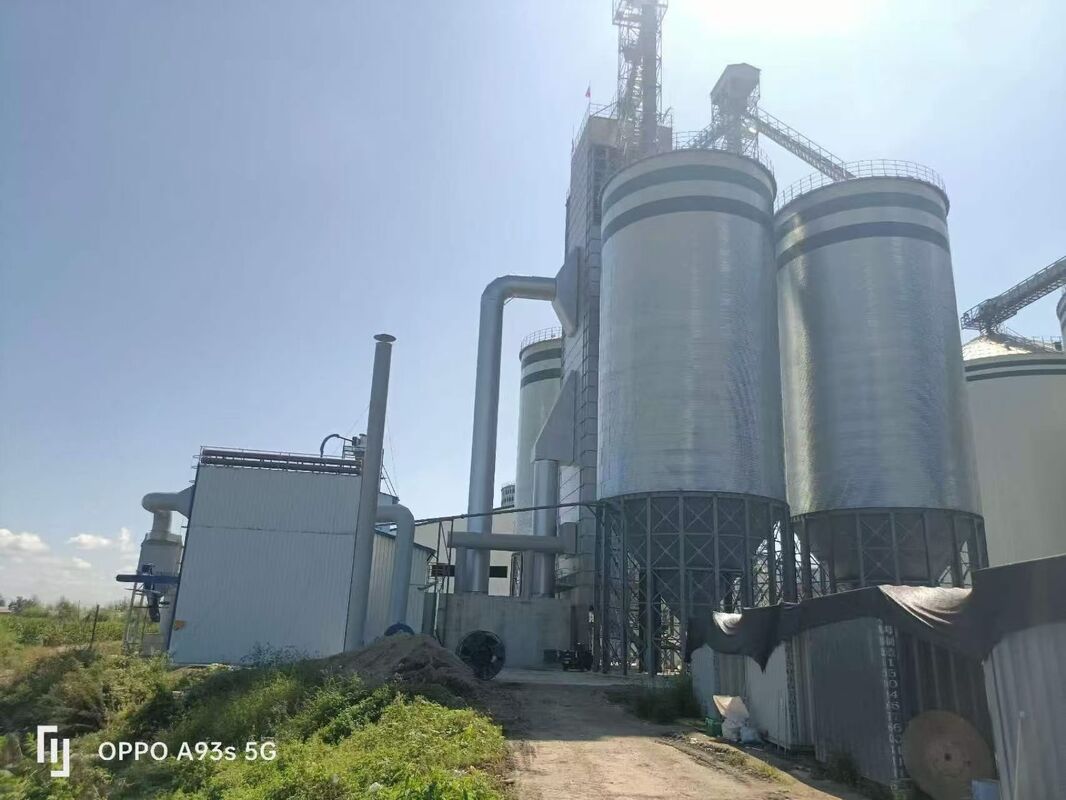

Low-temperature tempering for grain protection, low breakage high-capacity drying tower

   The WGH-800 concurrent & counter-flow grain dryer is a medium-to-large standardized continuous grain drying main equipment customized by Zhengzhou Wangu Machinery Co., Ltd. for large grain depots, large-scale grain and oil processing enterprises, and regional grain logistics hubs. It is developed for high-volume, high-intensity rush harvesting and drying scenarios in major grain-producing areas. The equipment precisely meets the mass production drying demands of large-scale grain operators, and targets industry pain points such as insufficient drying capacity, inconsistent grain quality and high energy consumption during centralized processing of high-moisture raw grain. It can complete large-scale dehydration of corn, paddy, wheat, soybean, sorghum, rapeseed, millet and other grain and oil crops in one stop, stably adjusting high-moisture raw grain to national safe storage moisture standards, greatly reducing losses caused by mildew and germination during large-scale grain storage. It is the core main equipment for improving drying efficiency of regional grain drying projects and large-scale grain storage projects.

   This 800-ton dryer adopts an enhanced multi-stage alternating concurrent & counter-flow low-temperature drying process, with optimized vertical tower material flow structure. Grain flows down uniformly by gravity, equipped with customized intelligent frequency conversion regulation and sectional temperature control system to adapt to 24-hour full-load continuous mass drying operation. The machine is specially equipped with extended tempering sections and zoned heat exchange structure, completely eliminating problems including uneven grain moisture, local over-drying and grain damage during large-batch drying. Compared with small and medium tonnage dryers, it has obvious exclusive advantages in continuous operation stability for mass production, batch drying uniformity, long-term energy-saving operation and maintenance, and high-load continuous running capacity. It is the preferred finalized equipment for large and medium-sized grain industrialization projects.

Equipment Structure and Drying Principle

   The WGH-800 concurrent & counter-flow grain drying tower adopts a modular three-dimensional drying architecture. It consists of four core functional modules: multiple reinforced concurrent high-speed drying zones, symmetrical counter-flow balanced drying zones, extended multi-stage tempering stabilizing sections and three-dimensional air cooling zones. All sections work in coordination with matched parameters to adapt to the daily production condition of 800 tons.

   The equipment adopts differentiated zoned heat exchange logic optimized exclusively for large-capacity working conditions: the front concurrent drying zone uses gradient hot air to quickly remove free surface moisture of grain, efficiently solving the problem of slow initial dehydration of large batches of high-moisture raw grain. The middle counter-flow drying zone implements low-wind-speed mild heat exchange to balance the overall temperature and moisture of grain layers and correct batch drying differences. The core extended tempering section provides sufficient time for moisture transfer between grain core and surface, balancing the moisture gradient fundamentally and strictly controlling cracking of paddy and breakage of corn. The terminal three-dimensional cooling zone adopts layered air cooling to rapidly reduce grain temperature and guarantee storage stability after grain warehousing.

   The whole drying process has no drying dead corners or material retention. Hot air penetrates thick grain layers fully. Grain quality after large-batch drying is highly consistent, fully meeting strict standards of large-scale grain batch processing and storage warehousing, and solving common drawbacks of traditional large-capacity drying equipment such as uneven drying and high quality loss.

Exclusive Main Features

1. Large-capacity exclusive composite concurrent & counter-flow process, zero color difference and no half-dried grain for mass drying

   Different from conventional processes of small and medium dryers, this machine is equipped with an exclusive gradient drying system for 800-ton grade. Combined multi-stage alternating concurrent & counter-flow heat exchange plus ultra-long tempering realizes penetrating and uniform drying for thick grain layers. It thoroughly eliminates common defects of traditional large towers: inconsistent moisture between upper and lower grain layers, local over-drying and large batch color difference. The moisture difference of discharged grain from the whole tower is extremely small, with highly unified grain quality after mass drying, especially suitable for national grain depot warehousing and high-standard raw materials for grain & oil deep processing.

2. Full-load 24-hour stable continuous production, no downtime during high-intensity rush drying

   The transmission system, grain distribution system and hot air system of the whole machine are upgraded and reinforced according to industrial continuous operation standards, specially designed for high-load non-stop rush drying in harvest seasons. It can realize stable full-process operation of feeding, drying and discharging day and night without interruption. No frequent shutdown for reheating, no thermal decay or capacity attenuation. It maximizes drying throughput in peak seasons and firmly seizes the grain purchasing window period.

3. Heavy-duty reinforced tower frame, suitable for years of outdoor high-intensity working conditions

   Adopting thickened main beams + integral modular reinforced structure, the tower has greatly improved wind resistance, deformation resistance and anti-aging performance. Optimized specially for long-term full-load vibration and alternating temperature difference of large equipment, it avoids deformation, air leakage, grain running and corrosion aging of large tower bodies after years of operation. It works stably and durably in open-air outdoor environments all year round, greatly reducing later maintenance and rectification costs.

4. Ultra-low grain loss drying system to greatly increase grain added value for customers

   With low-temperature progressive dehydration and multiple pressure-stabilizing tempering technology, the machine achieves low cracking rate and low breakage rate at the same time, and comprehensive grain loss is far better than industry standards. Dried corn keeps high integrity with few broken grains; paddy has minimal cracking; wheat is clean and plump in appearance. Large-batch drying effectively reduces grain discount loss and directly increases sales profit per ton of grain, with obvious yield and efficiency improvement.

5. Large-flow waste heat recovery system, greatly reducing energy consumption for mass drying

   Equipped with Wangu upgraded full-process hot air waste heat recycling structure. Targeting the large air volume and high heat of exhaust gas under 800-ton large-capacity operation, it maximizes waste heat recovery to preheat fresh air. The energy-saving effect is prominent under mass production conditions. Compared with ordinary drying towers of the same level, overall energy consumption drops significantly. Long-term mass production saves huge fuel costs and speeds up

return on investment.

6. Large-working-condition intelligent adaptive control system, eliminating frequent manual parameter adjustment

   Equipped with exclusive PLC intelligent algorithm for large capacity. It automatically matches hot air temperature, grain discharging speed and tempering duration dynamically according to real-time grain volume, raw grain moisture and ambient temperature & humidity. It runs adaptively throughout the whole process without repeated parameter calibration by experienced technicians. New operators can operate easily. It prevents substandard drying and grain damage caused by manual parameter adjustment errors, with simple operation and high stability.

7. Full heat source compatible design, adapting to local environmental protection and energy policies

   The air duct heat exchange structure of the equipment is optimized for broad compatibility. It can flexibly match biomass, natural gas, steam, clean coal and other heat sources. Users can freely select heat sources according to local fuel prices and environmental control requirements. It can meet clean production requirements in regions with strict environmental inspection, and adapt to low-cost fuel working conditions to help users optimally control operating costs.

8. Standardized mature large model, strong expandability and high versatility of after-sales spare parts

   The 800-ton model is Wangu’s mass-produced benchmark main model. The whole machine has high standardization and high versatility of spare parts. It avoids high failure rate and difficult spare parts procurement of customized machines. The equipment reserves upgrade interfaces. Functions can be expanded later according to grain volume growth and process upgrade demands, extending equipment service life and project adaptation cycle.

Technical Parameters

Application Fields

   The WGH-800 concurrent & counter-flow drying tower is precisely applied to regional grain reserves, large grain & oil deep processing enterprises, large-scale ten-thousand-mu planting cooperatives, port grain logistics distribution centers, large-scale oil processing bases and other medium and large grain operation scenarios.

   The equipment can cover large-scale drying of corn, paddy, wheat, soybean, sorghum, millet, rapeseed and other bulk grain and oil crops. Adopting clean indirect heat exchange process, dried grain is free of dust and flue gas pollution, fully meeting national grain warehousing storage standards and raw material standards for grain & oil processing. Drying parameters can be finely adjusted to adapt to raw grain with different producing areas and harvest cycles. Grain after mass drying has stable and uniform moisture, and is not prone to heating, mildew and caking during long-term storage. The whole machine can be equipped with professional dust removal and tail gas purification environmental protection systems to fully meet emission standards of provinces and cities, suitable for the construction of large-scale, standardized and green grain drying industrial parks.

Packaging & Quality Assurance

   The WGH-800 large drying tower adopts industrial split bare shipment. Large tower structural members are bundled and anti-corrosion protected; motors, intelligent sensors, PLC electric control cabinets, frequency conversion systems, precision instruments and other core electrical and control components are separately packed with shockproof sealing. It is suitable for long-distance highway, sea and combined land-sea transportation to prevent collision and moisture damage during transit. All standard connectors and precision fittings are separately classified and packaged for fast on-site assembly and connection.

   All equipment is manufactured in strict accordance with ISO quality management system. Each unit undergoes full-load simulated mass production commissioning, parameter calibration and complete machine performance inspection before delivery to ensure full-load production after arrival. The whole machine enjoys 12-month official warranty service. Tower load-bearing structure and heat exchange & tempering core components have special warranty.

   One-stop value-added supporting services include 24-hour remote online technical support, on-site complete machine installation guidance by professional engineers, full-staff operation & maintenance training, daily equipment maintenance teaching and long-term direct supply of original factory spare parts, ensuring stable operation of mass drying production line all year round. Minimum order quantity: 1 set. Standard delivery cycle: 40–50 days. Payment terms: Telegraphic transfer advance payment or sight letter of credit.

   Please inform us of your project site conditions, main grain varieties to be dried and available local heat source types. We will customize exclusive optimal configuration scheme for the WGH-800 model and provide accurate quotation and project adaptation plan.
