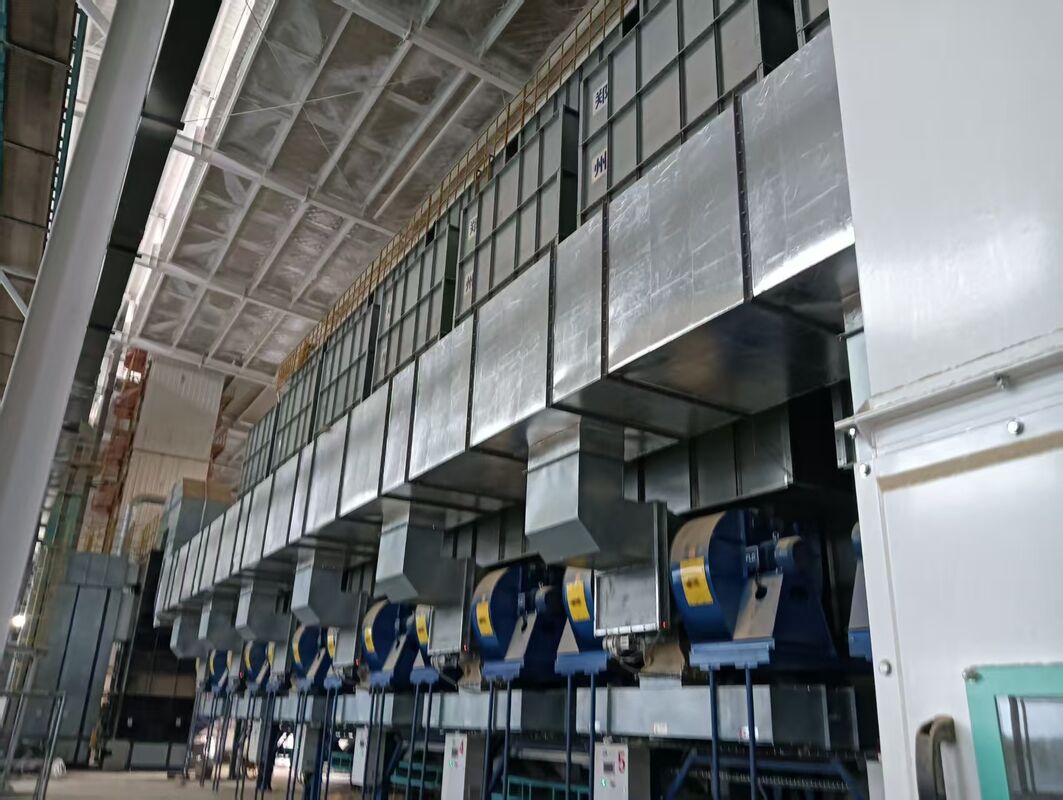

Circulation‑tempering dehydration stable drying and grain protection with reduced breakage

A Flexible, Efficient Choice for Small-Batch Grain Drying

— Practical Solutions with the 5HH Series Recirculating Grain Dryer

Grain drying after harvest serves both the continuous operations of large-scale grain depots and the small-batch, multi-run needs of family farms, cooperatives, and small collection points. Traditional large continuous drying towers require high investment and suit high-capacity operations, whereas small and medium-sized operators need a dryer with a compact footprint, moderate investment, and adaptability to multi-batch operations. Zhengzhou Wangu Machinery Co., Ltd. presents the 5HH Series Recirculating Grain Dryer, which adopts a batch recirculating low-temperature drying process to balance drying quality and equipment flexibility, delivering a cost-effective grain drying solution for cooperatives, family farms, and small collection and storage points.

1. Batch Recirculating Process Delivers Deep Drying on a Compact Machine

     Unlike the gravity-fed continuous discharge of large continuous drying towers, the 5HH Series Recirculating Grain Dryer operates in batch recirculating mode: grain is repeatedly lifted, dried, and tempered in circulation within the machine. This effectively extends the grain heating and tempering time without increasing the overall machine height, enabling stable moisture reduction even for freshly harvested grain with high moisture content.

     The machine is equipped with a bucket elevator to circulate grain inside the unit. The drying section features a multi-layer corner-pocket (angular vane) air-distribution structure, allowing hot air to penetrate the grain bed for thorough heat exchange, uniform heating, and resistance to clogging and material accumulation in the tower. A six-bladed even discharge mechanism ensures uniform discharge across the full section and complete emptying, guaranteeing consistent drying for every batch. The unit accommodates multiple heat-source options: natural-gas or biomass-fuel hot-air furnaces, or an air-source heat pump. Clean hot air is produced through a heat exchanger, so the grain never comes into direct contact with combustion flue gas, avoiding secondary contamination of the grain by smoke. Multiple emergency discharge ports are provided for convenient inspection, fault handling, and material removal during maintenance.

2. Full-Process Low-Temperature Recirculating Drying

     The 5HH Series Recirculating Grain Dryer has a vertical batch-recirculating structure: grain is fed by the elevator into the storage section at the top of the drying tower, moves downward by gravity into the drying section, and is dewatered as clean hot air penetrates the grain bed horizontally. The dried grain falls to the bottom, is discharged by the discharge mechanism, and is returned to the top of the tower by the bucket elevator, completing one cycle. Grain repeatedly goes through the “drying–tempering–recirculating” process, allowing internal moisture to migrate to the surface progressively and reducing grain moisture step by step. Once the target safe moisture is reached, the entire batch is discharged.

     The system sets the hot-air temperature according to grain variety and initial moisture, operating in low-temperature drying mode to reduce thermal shock and the risk of rice kernel fissuring and breakage. An optional online moisture monitoring unit detects grain moisture in real time and can alert the operator or automatically shut down the machine when the moisture target is reached. Dried grain can be cooled inside the machine, and the discharge temperature is close to ambient temperature, so the grain can be bagged and stored immediately after drying without a second drying step. The unit suits both commodity grain and seed grain, protecting seed germination vitality during low-temperature drying.

3. Versatile Machine Design Delivers Comprehensive Value

     Choosing the 5HH Series Recirculating Grain Dryer offers more than drying capacity alone—it fits the real operating scenarios of small and medium-sized operators.

     Moderate investment, lower entry threshold. Compared with large continuous drying towers, the equipment costs less and requires simpler civil works with no large-scale infrastructure, making it suitable for cooperatives, family farms, and small collection and storage enterprises.

     Compact footprint, easy deployment. The machine is compact and occupies little floor area; it can be installed in simple indoor workshops or in the open air. Some models support mobile conversion and can be moved between operating sites, serving multiple collection points with one machine.

     One machine, multiple uses, adaptable to many varieties. A single unit handles rice, wheat, corn, soybean, and other grains, serving both commodity grain and seed grain; during peak seasons it can process different grain types in rotation, improving year-round equipment utilization.

     Simple operation and maintenance. The batch logic is clear and the human–machine interface is simple; ordinary operators can get started after brief training. Multiple inspection ports and emergency discharge ports make routine cleaning and troubleshooting easy.

4. Hardware Assurance for On-Site Deployment

     The 5HH Series Recirculating Grain Dryer uses corrosion-resistant panels for the tower body, which is sturdy in construction with stable air distribution and reliable, smooth operation of the recirculating lift mechanism. The machine integrates the complete set of storage, drying, tempering, cooling, and recirculating-lift units. Heat sources are flexibly selectable: natural-gas hot-air furnaces, biomass hot-air furnaces, or air-source heat pumps can all be adapted to meet energy conditions and environmental requirements in different regions. The equipment suits rural cooperatives, family farms, small grain stations, and seed enterprises. It can run as a fixed installation for long-term operation, and some models support mobile modification for cross-site needs.
