Heavy Duty Rotary Steam Tube Bundle Dryer , Large Manure Drying System

Product Details

Place of Origin: ZHENGZHOU

Brand Name: WANGU

Certification: ISO

Model Number: GHG

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Negotiation

Packaging Details: Nude packing

Delivery Time: 30-100days upon the order quantity

Payment Terms: L/C, T/T

Supply Ability: 200 sets a year

Get Best Price
Highlight:

rotary vacuum dryer

,

industrial rotary dryer

Raw Material:
Spent,pig Hair,bone Meal,inorganic Minerals
Heat Exchange Area(m2):
50-1000
Diameter Of Roller(mm):
1300-3000
Warranty:
12 Months
Raw Material:
Spent,pig Hair,bone Meal,inorganic Minerals
Heat Exchange Area(m2):
50-1000
Diameter Of Roller(mm):
1300-3000
Warranty:
12 Months
Heavy Duty Rotary Steam Tube Bundle Dryer , Large Manure Drying System

GHG12×2.1×3 Heavy Duty Rotary Tube Bundle Dryer Machine Rotating Drum Dryer Machine

1. Introduction:

Chemical industry, light industry, food, grain,feed and other industries, such as the drying of distiller’sgrains, pig hair, bone meal,inorganic minerals, corn fiber, germ, protein powder, bran, corn grains, soybean dregs, fish and shrimp scraps, rapeseed (not for seed use)and other materials.
2. Scope of application
 Spent grain,pig hair,bone meal,inorganic minerals,corn fiber,germ,protein powder,bran,corn grians,soybean dregs,fish and shrimp scraps,rapeseed and other materials
3. Features of material
Raw material Initial moisture End moisture Evaportaion power kgH2O/m2h
Straw 55% 3~5% 2.5~3
Corn fiber 60% 10~12% 4.8
Fermented grass powder 45% 12~13% 4.7
Wooden piece and chip 20% 2~3% 4.3
Potato fiber 65% 10~12% 4.8
Distiller's grain for beer or spirit 65% 10~12% 4.9
Feed carrier 16% 6~8% 4.2
Rape seed 60% 5~7% 4.5
Pig blood fermented powder 35% 10% 4.4
Bone powder 40% 10% 4.6
 4. Advantages
It’s a low-carbon, environment-friendly and energy-saving product and its energy consumption is about 65% of that ofthe traditional tube bundle dryer.
■ During the rotating process, the rotary tube bundle stirs materials up and down inside the roller.There are no dead angle when turning and mixing material.
■ Since the heat exchange tube is not bearing weight of raw material when the roller is rotating, the probability of leakage of the heat exchange tube is lower.the service life of the equipmentis greatly improved; what’s more, it also allows starting with raw materials,thus is easy to use and maintain.
■ It increases the indirect heat exchange area.The whole roller shell is involved in the heat exchange when the roller is in operation,which is more conductive to materials raw material drying and enhances the drying effect.
5. CORN DRYER CHARACTERISTICS:
Model Heat exchanger area(m2) Diameter of roller(mm) Rotating speed(r/min) Main power(kw) Power of screw conveyor(kw) Dimension
GHG300 300 2200 2~7 15 1.5 12000×2100×3000
6. Product Detail Show

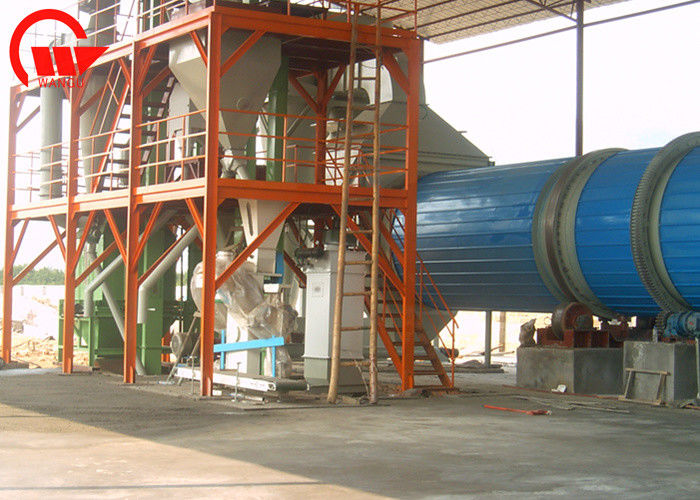

Heavy Duty Rotary Steam Tube Bundle Dryer , Large Manure Drying System 0Heavy Duty Rotary Steam Tube Bundle Dryer , Large Manure Drying System 1
7. Our WorkShop
Heavy Duty Rotary Steam Tube Bundle Dryer , Large Manure Drying System 2
8. Our Worker
Heavy Duty Rotary Steam Tube Bundle Dryer , Large Manure Drying System 3
9. Customer visit
Heavy Duty Rotary Steam Tube Bundle Dryer , Large Manure Drying System 4
10. R&D Team
Heavy Duty Rotary Steam Tube Bundle Dryer , Large Manure Drying System 5
11. Our Office
Heavy Duty Rotary Steam Tube Bundle Dryer , Large Manure Drying System 6
12. Why Choose Us

1, High drying rate , low cost and affordable.
2, The manufacturers supply, no middlemen to earn price difference.
3, Good engineers do technical guidance, the operation without worries.

13. FAQ

Q: MOQ?
A: For trial order,we accept 1 set


Q: Can you give us competive Price?
A: Yes , before inquiry us , please kindly send us the detail information of dryer. We will give you our best price.


Q: Payment terms?
A: It is 30% in advance by T/T, or L/C at sight.
