Rice Mill Chain Belt Bucket Elevator Low Speed 600 - 1200mm Head Pulley Dia

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : Nude packing Delivery Time : 30-100days upon the order quantity
Payment Terms : L/C, T/T Supply Ability : 200 sets a year
Place of Origin: ZHENGZHOU Brand Name: WANGU
Certification: ISO Model Number: TDTG

Detail Information

Material: Carton Steel/Stainless Steel Warranty: 12 Months
Head Pulley Dia,(mm): 600-1200 Line Speed (m/s): 2.0-3.3
Capacity (t/h) (corn): 80-1200 Max. Height(m): 50-55
High Light:

rice mill elevator


grain bucket elevator

Product Description

                            Grain Bucket Chain Conveyor Design Rice Mill Vertical Bucket Elevator
1. Introduction:

     TDTG series bucket elevator is a type of elevating equipment to convey materials continuously and vertically, adapting to vertical hoisting of the food particles or crushed pellets. Bucket elevator takes advantage of motor rotation to drive the shaft-coupling, head wheel and bucket belt to lift the materials in the buckets fixed in the bucket belt to the required height from the bottom of the elevator, then send them into the bin under the action of centrifugal force. Furthermore, the elevator is also suitable for lifting and transporting particles, powder and granulated materials etc., so it widely adapts to grain depot, port, grain and feed processing plant and distillery etc..
The machine as needed could be equipped with stall monitoring device and deviation monitoring device, still with a vent to prevent powder exploring, and sensitive, reliable non-return device, adopting high strength plastic bucket, making sure low residues, and of excellent sealing, compact structure, high lifting height, and large transport volume, which is an international advanced elevating equipment.


Model Head Pulley Dia,(mm) Line Speed (m/s)

Capacity (t/h)


Max. Height(m)
TDTG60/38 600 2.0-2.8 80-150 50
TDTG80/46 800 2.0-3.2 150-250 50
TDTG80/56 2.0-3.2 250-350 50
TDTG80/38×2 2.0-3.2 280-400 50
TDTG100/46×2 1000 2.3-3.3 450-600 55
TDTG100/56×2 2.3-3.3 700-800 55
TDTG100/44×3 2.3-3.3 600-800 55
TDTG120/47×3 2.3-3.3 800-1000 55
TDTG120/56×3 1200 2.6-3.3 950-1200 55

3. Features

  a. Head pulley and return pulley are designed to drum shape,effectively to prevent belt deviation; head pulley is covered with detachable rubber coating; squirrel-cage return pulley, remarkably to reduce the broken rate of grain.

 b. High strength polyester nylon bucket belt, low elongation, corrosion resistance, flame retardance, anti static.

 c. High strength lightweight plastic bucket, corrosion resistance, abrasion resistance, light, low energy consumption.

 d. Machine barrel adopts quality steel plate, using special folding process, high strength and good sealing performance.

 e. Adopt screw tension or gravity tension, constant tension.

 f. Assembled observation window and vent, effectively to prevent dust explosion, safe and reliable.

 g. With backstop or accessory drive gear, being able to effectively prevent the blockage caused by the shutdown, easy installation and maintenance.

 h. Optional speed monitoring device, deviation monitoring device, anti-blocking device and temperature monitoring device.

4. Product Detail Show

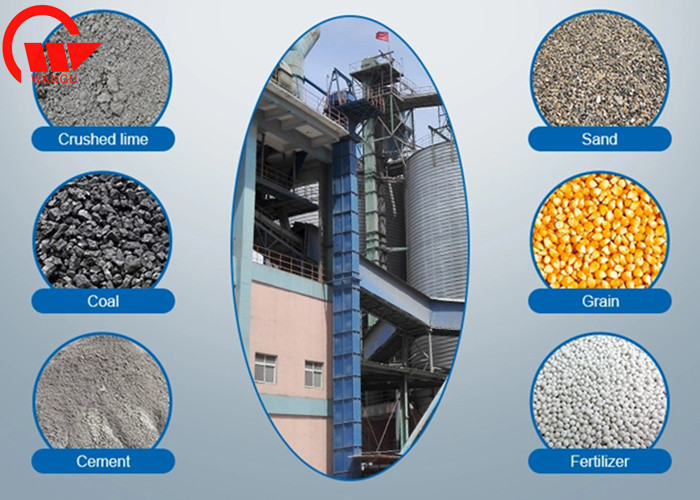

Rice Mill Chain Belt Bucket Elevator Low Speed 600 - 1200mm Head Pulley Dia 0Rice Mill Chain Belt Bucket Elevator Low Speed 600 - 1200mm Head Pulley Dia 1
5. Our WorkShop
Rice Mill Chain Belt Bucket Elevator Low Speed 600 - 1200mm Head Pulley Dia 2
6. Customer Visit
Rice Mill Chain Belt Bucket Elevator Low Speed 600 - 1200mm Head Pulley Dia 3
7. Why Choose Us

1, High drying rate , low cost and affordable.
2, The manufacturers supply, no middlemen to earn price difference.
3, Good engineers do technical guidance, the operation without worries.
