Product Details
Place of Origin: ZHENGZHOU
Brand Name: WANGU
Certification: ISO
Model Number: TQS
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Nude packing
Delivery Time: 30-100days upon the order quantity
Payment Terms: L/C, T/T
Supply Ability: 200 sets a year
Material: |
Carton Steel/Stainless Steel |
Warranty: |
12 Months |
Colour: |
Customized |
Capacity(m³/h): |
50-2000 |
Material: |
Carton Steel/Stainless Steel |
Warranty: |
12 Months |
Colour: |
Customized |
Capacity(m³/h): |
50-2000 |

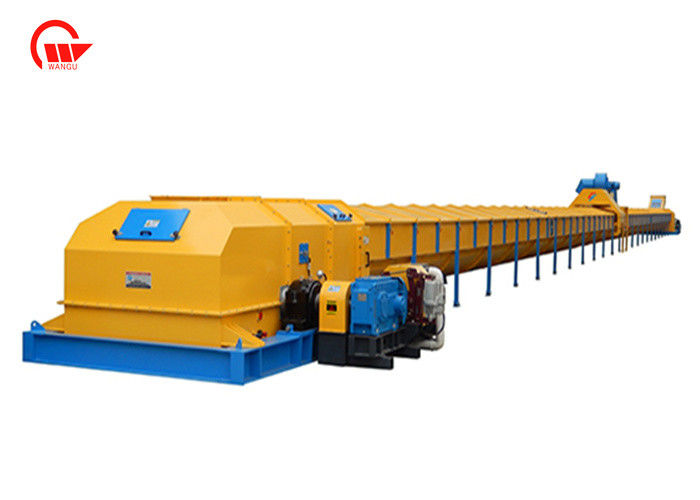

TQS Series wholesale products industrial quality assurance cost-effective air cushion belt conveyor
1. TQDS Series Air Cushion Conveyor
Principle:
- Air is blown into an air chamber and then spayed out from small openings of the curved chute which is equipped on the top of the air chamber. Thus a thin air layer is formed, which is also called air cushion, between the curved chute and belt. The air cushion supports the belt instead of the traditional carrying roller of the belt conveyor and makes the transfer of the belt more stable and less power consumption.
Features:
- Less moving resistance, longer service span of belt, less power consumption .The running cost of the equipment can be reduced by 80%.
- Optional range of belt velocity (0.8m/s~5.0m/s). High speed brings higher capacity and higher efficiency.
- The equipment and the belt work stable without the belt deviation and making materials spray out.
- The equipment can work outdoors thanks to its complete sealing and rain proof.
- The equipment is less noise and easy to maintain and easy to started with load.
- Please feel free to contact us if more information is needed.
2. CHARACTERISTICS:
| Model | TQS50 | TQS65 | TQS80 | TQS100 | TQS120 | TQS140 | TQS160 |
| Capacity(m³/h) | 50-100 | 100-200 | 200-300 | 300-600 | 600-1000 | 1000-1200 | 1500-2000 |
3. Product Detail Show
7. Our Office
5. FAQ
Q: MOQ?
A: For trial order,we accept 1 set
Q: Can you give us competive Price?
A: Yes , before inquiry us , please kindly send us the detail information of dryer. We will give you our best price.
Q: Payment terms?
A: It is 30% in advance by T/T, or L/C at sight.
