Oil Refinery Industrial Oil Press Machine Steam Circulation Mixing Decolorizer

Minimum Order Quantity : 1 SET Price : NEGOTIATION
Packaging Details : STANDARD PACKAGE Delivery Time : 30-90 DAYS
Payment Terms : L/C, T/T Supply Ability : 200 SETS PER YEAR
Place of Origin: ZHENGZHOU Brand Name: NEW LEAD
Certification: CCC Model Number: TST

Detail Information

Condition: New Type: Cold & Hot Pressing Machine
Automatic Grade: Automatic Advantage: Simple Operation,Energy Saving
Function: Crude Oil Refinery To Edible Oil Product Name: Oli Press Machine
High Light:

oil mill machine

,

oil manufacturing machine

Product Description

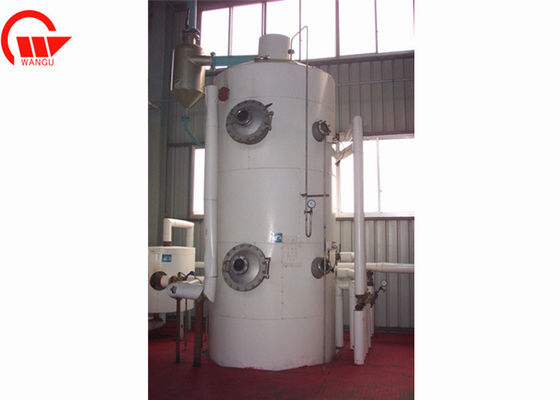

TST 80-300 Steam circulation mixing decolorizer for oil refinery

1. Equipment structure, working principle and performance characteristics
      At present, most domestic decoloring equipment is mainly mechanical mixing (straight or oblique mixing). This kind of equipment generally has the following problems: there is a mechanical leaking point at the joint of the mixing shaft and the equipment body, which makes it impossible to guarantee the proper vacuum in the equipment. Mechanical mixing has a dead angle, which affects the heating and adsorption effect. In addition, mechanical mixing increases power consumption. The continuous steam circulation decoloring equipment developed by Leader is suitable for continuous adsorption and decolorization of vegetable oils, and can be used to produce high-quality edible oils (such as advanced cooking oil and salad oil
a. Structure
The equipment is mainly composed of shell, partition board, overflow pipe, direct steam heating pipe, and liquid level control system. The upper body of the shell is equipped with manhole and sight glass.
b. Working process
 The oil to be decolorized is mixed with quantitative clay in a premixing tank, and after preheating, it is pumped into the equipment body from the top of the decoloring equipment and falls on the first layer of the equipment body. Direct steam is injected for heating and blowing, when the liquid level reaches a certain height, the mixed slurry flows into the second layer through the overflow pipe, repeats the first layer operation, and then mixes and heats in the third layer, so that the white clay can fully absorb the pigment in the oil.z Finally, the mixed slurry of oil and white clay is extracted from the decolorizing equipment and entered into a vertical blade filter for waste white clay filtration.
c. Characteristic
   c1.The superheated steam is used to blow the material to make the material turn evenly, avoiding dead angles and short circuits. Steam mixing is adopted to avoid vacuum leaking.
 c2.The equipment is equipped with a liquid level automatic control device, which ensures the continuous and safe operation and minimizes human factors during the working process.
c3.The high-efficiency leaf filter is used to filter the waste white clay to realize continuous filtration. Low labor intensity, good environmental conditions, less residual oil in the waste white clay.
c4.Steam mixing saves motors, reduces manufacturing costs and equipment prices.
2. Main specifications and technical paramete

Model TST-80 TST-90 TST-120 TST-140 TST-160 TST-100 TST-240 TST-300
Capacity T/D 15-20 30 50 100 150 200 300 600
Size 800×3450 900×4300 1230×4675 1400×4900 1600×5150 2000×5600 2400×5850 3000×7750

3. Our Workshop
Oil Refinery Industrial Oil Press Machine Steam Circulation Mixing Decolorizer 0Oil Refinery Industrial Oil Press Machine Steam Circulation Mixing Decolorizer 1
5.Our office
Oil Refinery Industrial Oil Press Machine Steam Circulation Mixing Decolorizer 2Oil Refinery Industrial Oil Press Machine Steam Circulation Mixing Decolorizer 3
6. Why Choose Us

1,High refining rate , low cost and affordable.
2,The manufacturers supply, no middlemen to earn price difference.
3, Good engineers do technical guidance, the operation without worries.
